Fleet Sampling

As your fleet grows, it becomes more costly to send, process and store the data from all of your devices. Fleet Sampling will help keeping the costs low by collecting diagnostics and performance data only from a smaller, yet statistically significant, subset of your fleet. At large fleet sizes, this smaller "sampled" population of devices provide sufficiently representative data to still provide all relevant insights and to understand issues as they occur across your fleet.

Memfault strongly recommends usage of Normalized Charts on Dashboard and Metric Charts with Fleet Sampling to understand trends across your fleet correctly. Normalized Charts are enabled by default for Fleet Sampling projects.

Fleet Sampling Aspects

Each device in the fleet can be configured by turning their specific Fleet Sampling Aspects on or off. See the differences between the aspects and their respective states in the table:

PlatformAspectsResolution: OffResolution: On
AndroidMonitoringOnly periodic device check-insBatterystats and Custom Metrics are collected every 2h
AndroidDebuggingNo crash collectionCrash reports (via Bug Reports or Caliper), reboot reasons and Custom Events are collected
AndroidLoggingNo logs, except if they are part of a crash reportLog collection and upload in the case of an overlap with a trace event (see details here). Logs that have been already collected on the device and not yet sent will also be uploaded as soon as the device receives the logging resolution change to On. For details, see Log Collection.
MCUMonitoringOnly periodic device check-insPeriodic collection of Metrics with heartbeats
MCUDebuggingNo crash/debug data collectionCoredumps, trace events, reboot reasons and Custom Data Recordings are collected
note

Please also see Rate Limits page as collection of these items are subject to rate limiting.

Your devices won’t be “in the dark” even if all three aspect resolutions are set to Off: They’ll still continue contacting Memfault to check for OTA updates and download, be considered as active devices (which also contributes to the Memfault dashboard) and visible under Devices page along with their software versions and last check-in times.

Managing aspect resolutions of your devices

It’s helpful to have the best visibility on devices that are prone to be problematic on the field (frequent customer complains/tickets) for further investigation or devices used during the development/testing phases so that crashes and performance issues can be detected ahead of time.

To set an aspect resolution of an individual device, navigate to the corresponding Device Details page, select Fleet Sampling Resolutions and click on the edit icon next to the resolution value.

fleet_sampling_single_device.png Updating sampling resolutions of a single device

Devices will be polling these changes periodically (by default every 2h) and will report their state back once the configuration is applied. Config state can have the following values:

Never reportedDevice hasn’t reported any config state yet and is most probably a “pending” device
OutdatedDevice hasn’t contacted Memfault since the config was changed
PendingDevice downloaded the new config but hasn't applied and acknowledged it yet
SyncedDevice is using the configuration as seen on the Device Details page

When using Bort's Development Mode, an immediate configuration update can be requested after changing the fleet sampling configuration, instead of waiting for the next regular time the device is going to poll its configuration.

Quotas

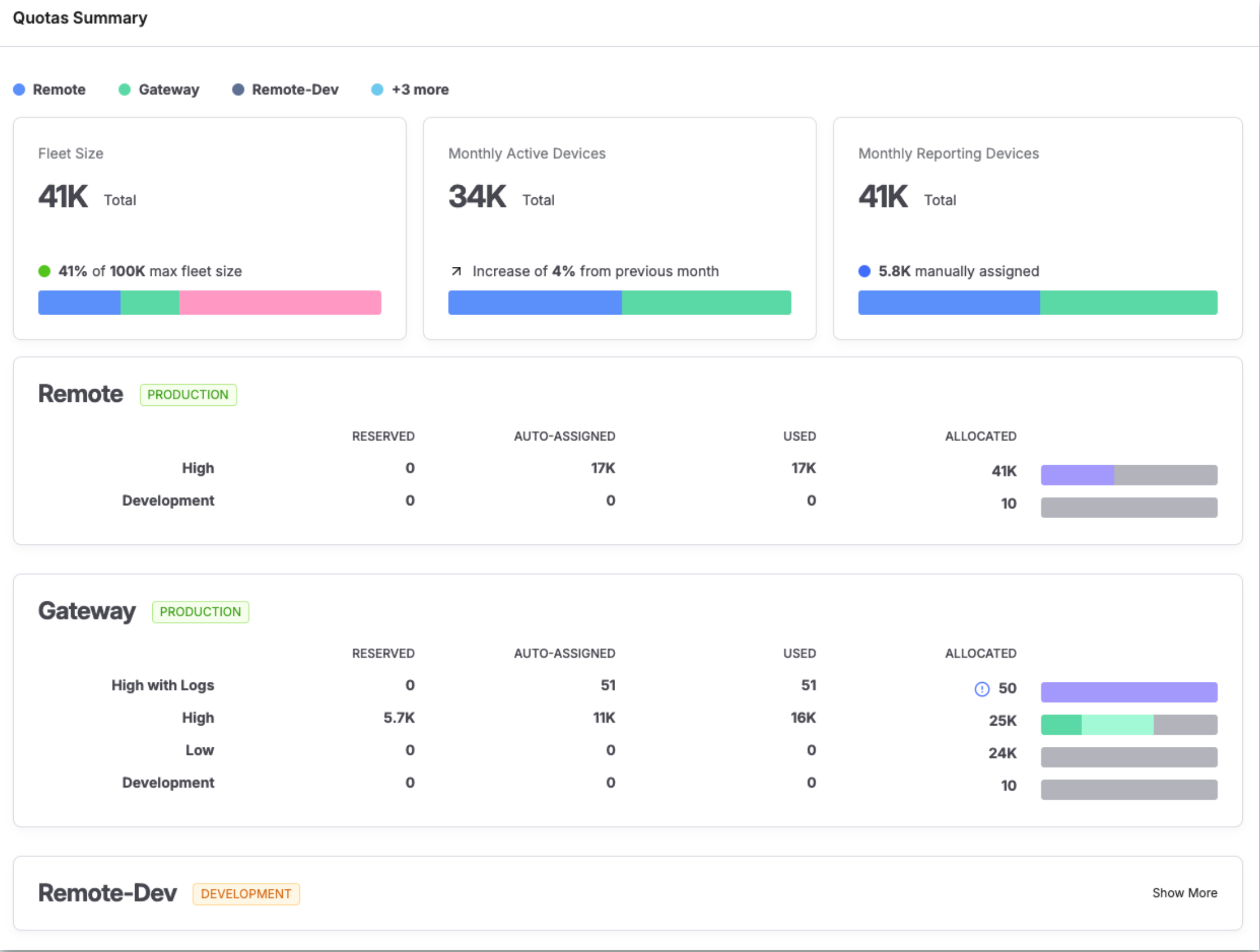

Quota and usage information can be accessed under Settings → Quotas. fleet_sampling_quota_page.png

The number of devices for which Fleet Sampling can be turned on concurrently is limited. The concrete value varies by project and can even be different per Fleet Sampling aspect.

If the aspect resolution quota configured for the project is reached, an error message will be shown at the top of the page when changing the sampling resolution of a device to On:

fleet_sampling_quota_limit_single_device.svg Hitting the quota limit when updating sampling resolution of a single device

In order to free up quota, devices with the relevant aspect resolution On can be filtered under Device Search and their resolution can be set to Off in bulk, as explained in Setting aspect resolution of multiple devices section.

fleet_sampling_search_devices_monitoring_on.png Searching for devices with logging resolution “On”

Setting aspect resolution(s) of multiple devices

Memfault’s Device Search allows you to precisely describe a population of devices before assigning their respective sampling resolutions. Using the search parameters, specific populations of the fleet where the most visibility is needed (i.e. devices experiencing fast battery discharges/connectivity issues in the past or devices in a specific cohort) can be defined and their sampling resolutions can be updated all at once in bulk. Having such a visibility is also important before rolling out new software versions to be able to proactively monitor the potential negative effects of the roll out.

fleet_sampling_turn_on_all_aspects.png Turning on all aspects of all devices in the Test Cohort

In the event of hitting quota limits when assigning sampling resolutions in bulk, a warning message will be presented to the user (see the screenshot below). You should free up the required quota for the assignment before continuing with the assignment. This can be done via:

  1. Updating your plan by emailing sales@memfault.com
  2. Turning the respective resolutions of some other devices to Off by using the same mechanism as a prior step.

fleet_sampling_turn_on_all_aspects_quota_limit.png Turning on all aspects of all devices with software version 1.0.0 and hitting the quota limit for Logging

Another option for predictably assigning sampling resolutions is to “limit” the number of devices that will be affected from the bulk operation: It limits the assignment to be applied on "the first N devices" that match with the search criteria and the sorting order. In the example below, the quota for logging is limited to 10 but 80 devices match the search query software_version = 1.0.0: Using the limit option, the change will be applied on the last seen 5 devices with the software version 1.0.0.

fleet_sampling_turn_on_all_aspects_with_limit.png Limiting the number of devices with software version 1.0.0 that will be updated

info

The list of devices to be updated with new sampling resolutions will only be materialized once the request is received upon clicking on “Start Bulk Operation” button. That means, the assignment will be performed against the search query that’s used (or against the whole fleet in case of no search query) and the numbers should be taken as an estimation.

This conveys that in the context of the screenshot above, the devices to be updated may be different than what’s displayed in the search results since new devices may have contacted Memfault and have a more recent last seen information in the meantime.

If devices to be updated with new sampling resolutions need to be precisely selected, please select them explicitly via the checkboxes in the search result before performing the action.

As this operation can take a long time, the result will be communicated via email to the user initiated the action. The email contains a summary of the changes and how many devices are affected by the change.

Default Fleet Sampling configuration of new devices

Memfault will automatically assign resolutions to the newly enrolled devices, as long as the quota limits permit. When a device contacts Memfault for the first time, the default configuration to be propagated would be:

  • Monitoring: On
  • Debugging: On
  • Logging: Off (as this is only offered for a small set of devices)

In the case of quota limits are reached, the respective aspect with no quota will be set to Off resolution. See Setting aspect resolution of multiple devices section to free up quota before a mass roll-out.

Log Collection

note

Log Collection feature is only supported on the Bort SDK, starting with version 4.2.0.

Log Collection feature allows you to retrieve past logs from devices when the Logging resolution is set to On, even when the devices have not been sending any crash reports or monitoring data. Upon receiving the change of the Logging resolution to On, Device will send all previously stored logs and once caught up, it will continue sending new logs until the resolution is set to Off. (See Android Logging for more details).

Logs are kept on the device as long as the storage limit (which can only be configured by Memfault) permits. Please contact support@memfault.com for updating it.

API

Using Memfault’s REST API the devices belonging to a project can be listed together with their aspect resolutions. However, there is currently no API to set the Fleet Sampling resolution programmatically. Instead, configure Device Attributes via API to mark devices you want to update and perform a bulk assignment searching for matching devices via the frontend as described above.
